MROM64C PCB assembly instructions

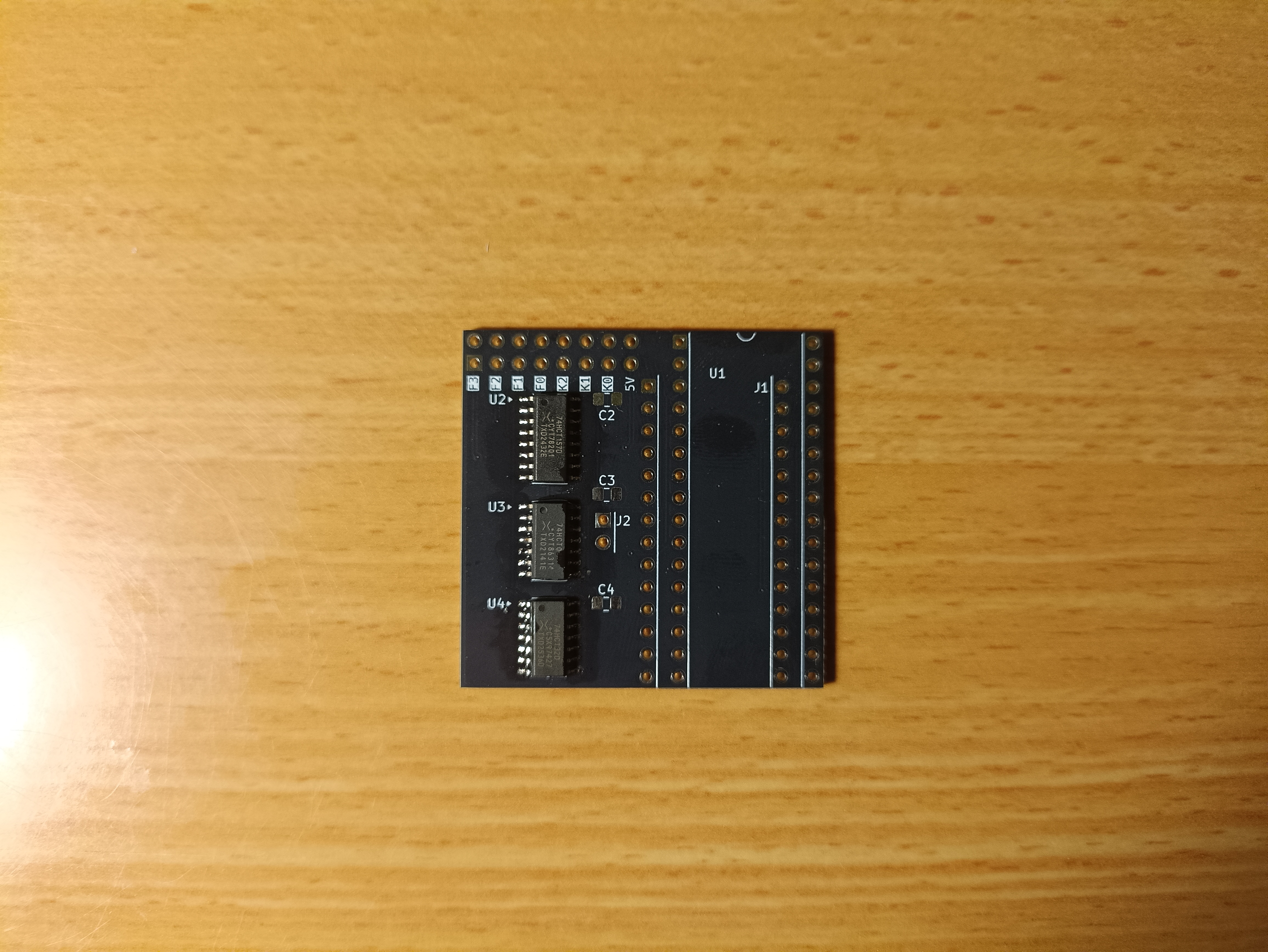

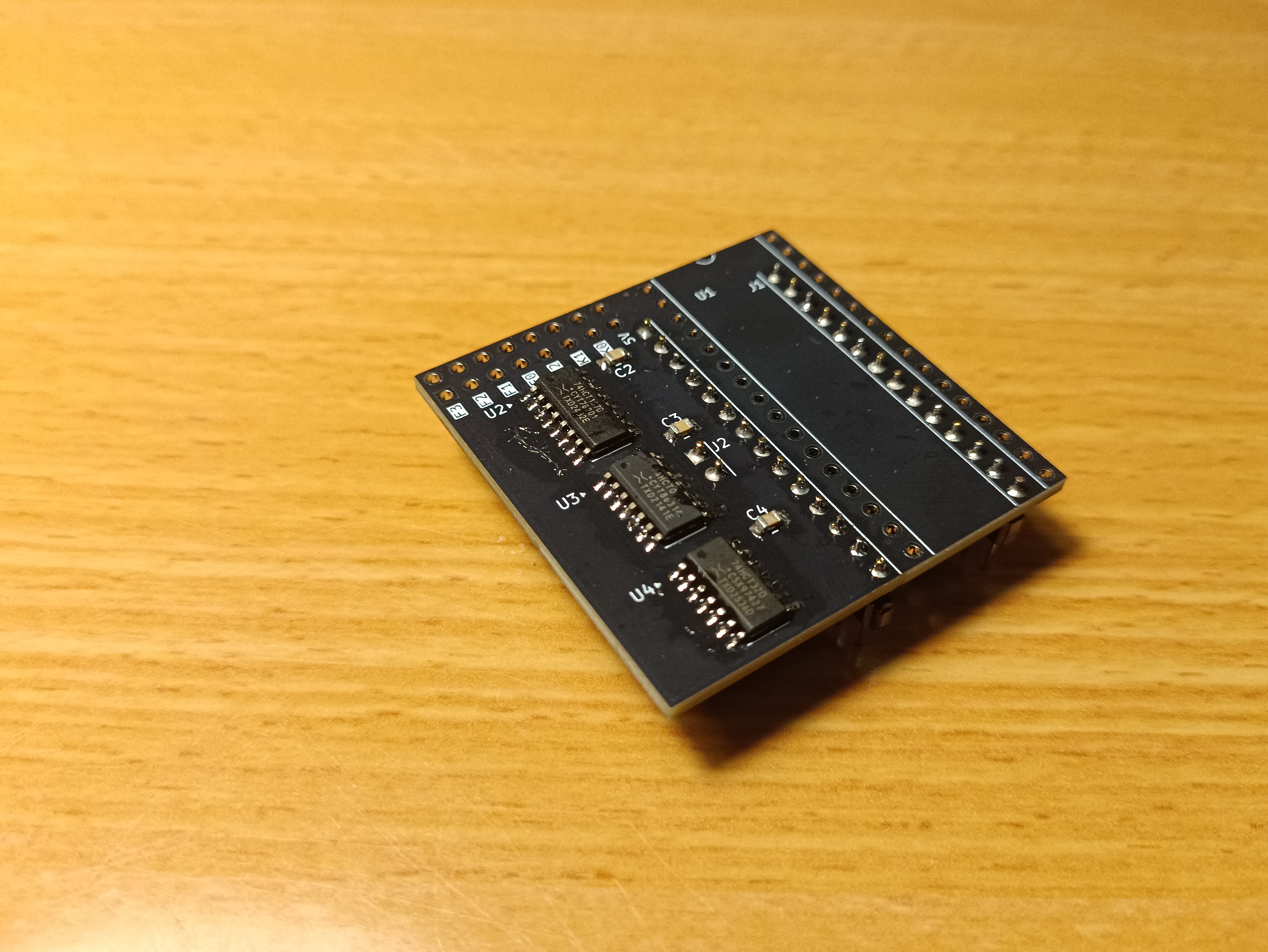

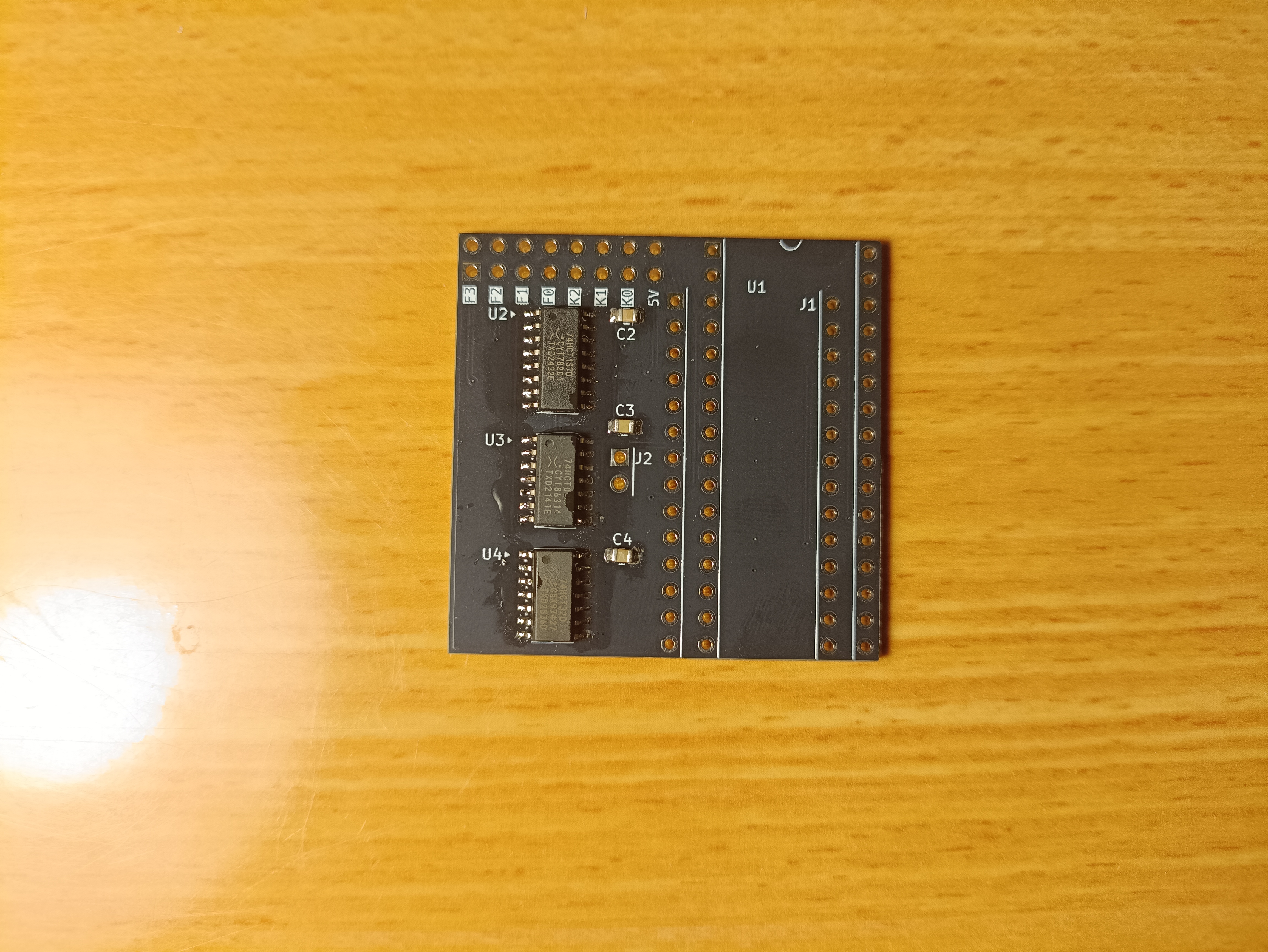

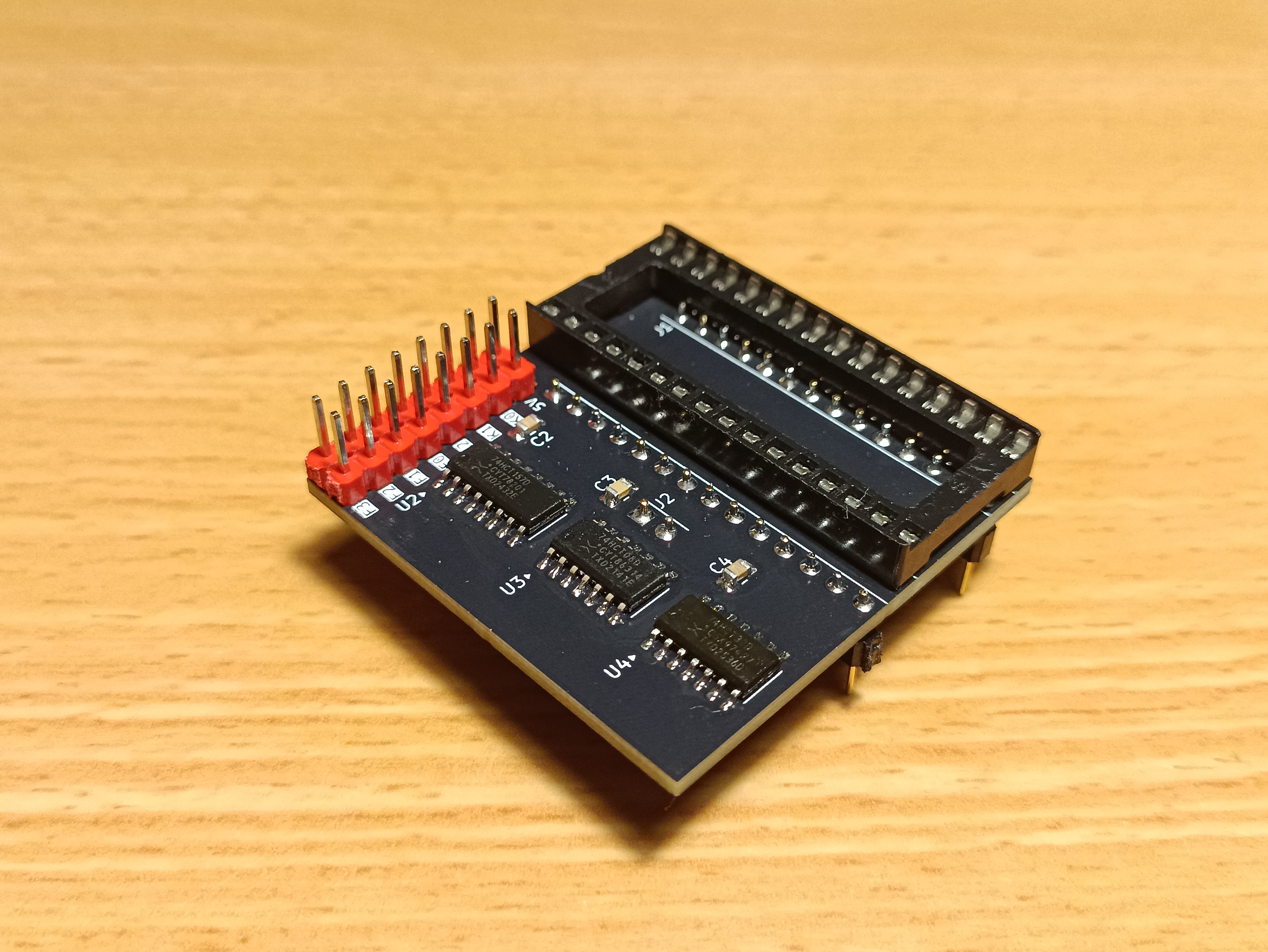

1. Solder all top-side chips (U2, U3, U4) and capacitors (C2, C3, C4).



---

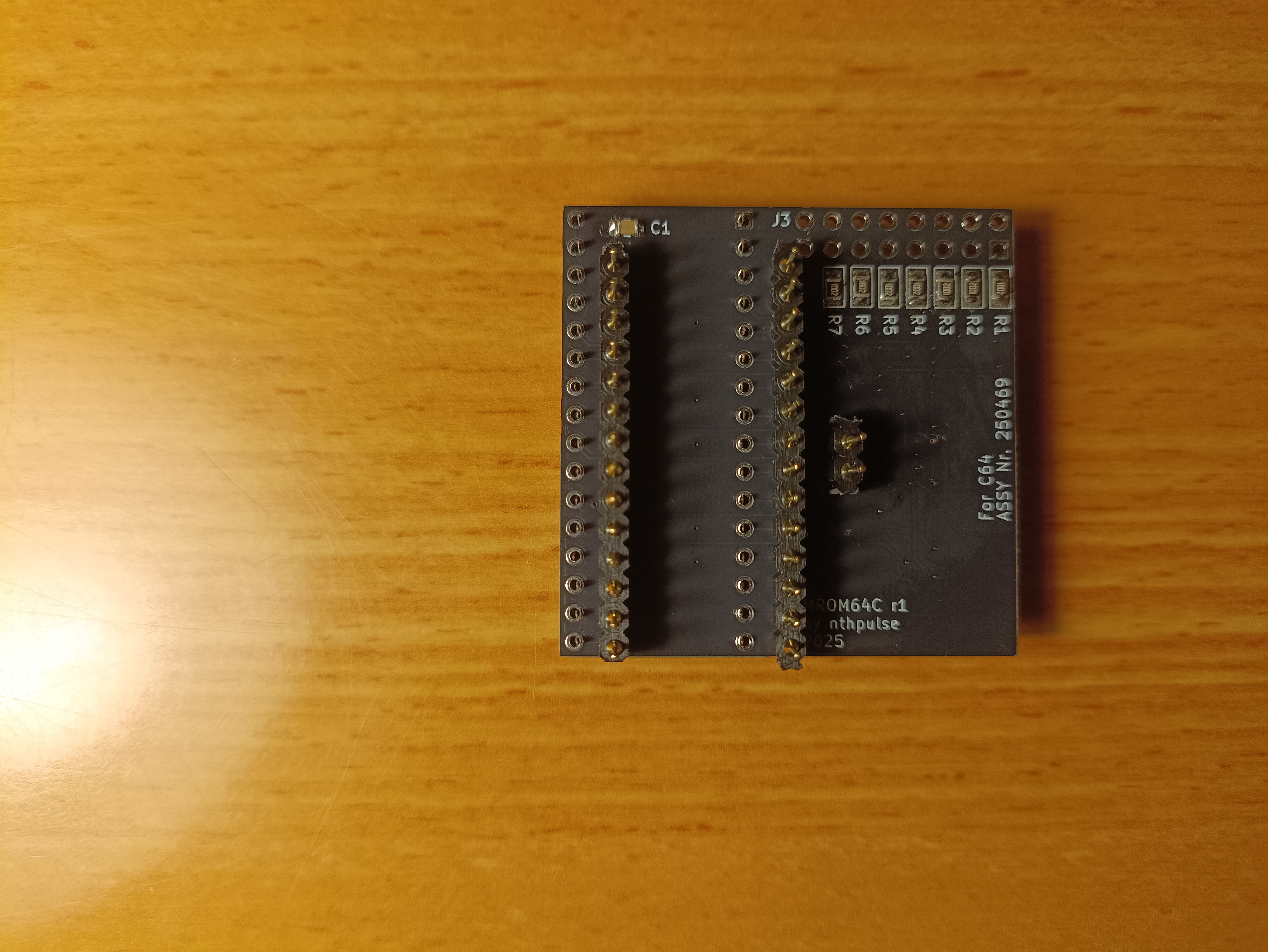

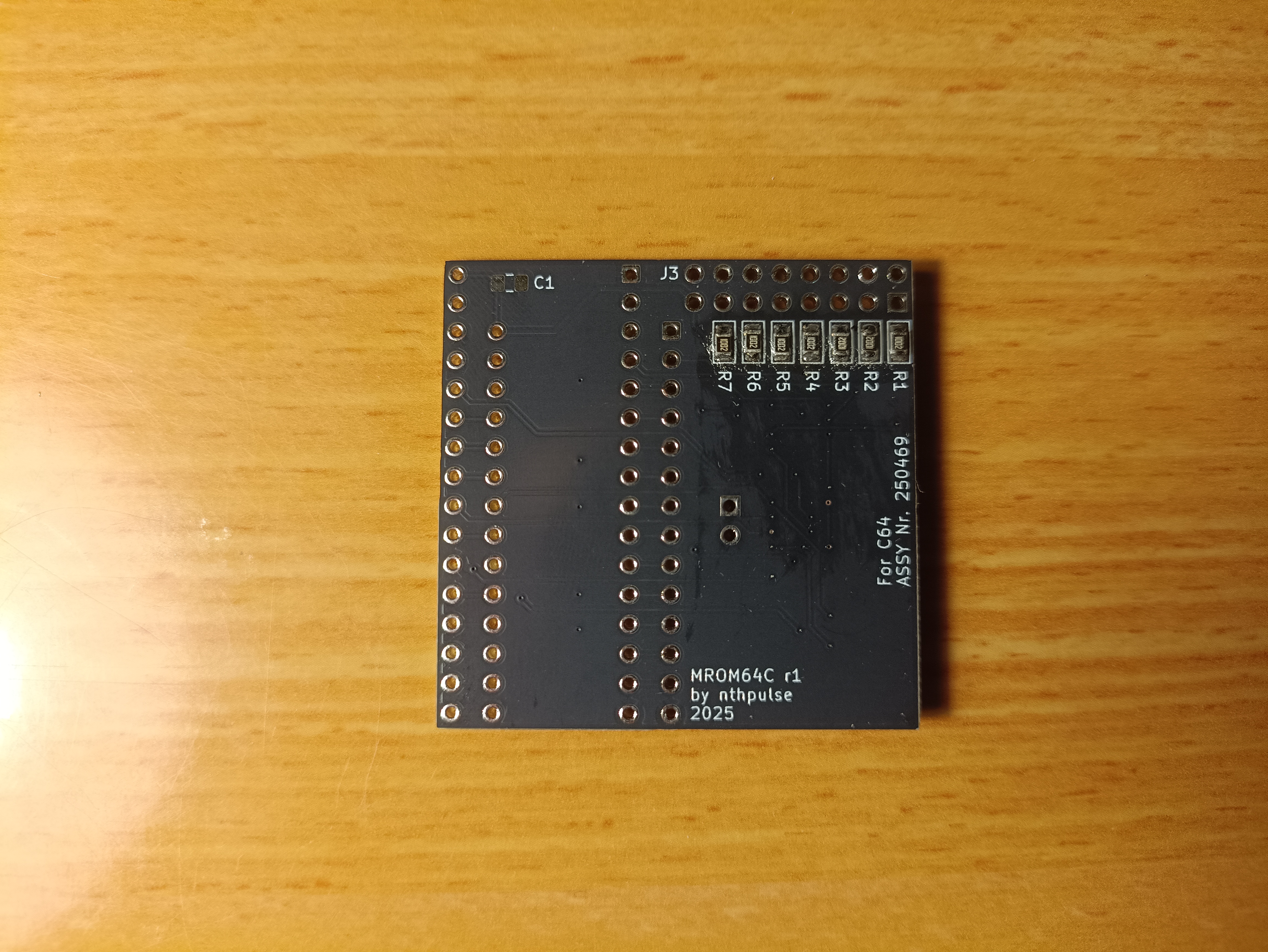

2. Solder the capacitor (C1) and pull-up resistors (R1 - R7) on the underside.



---

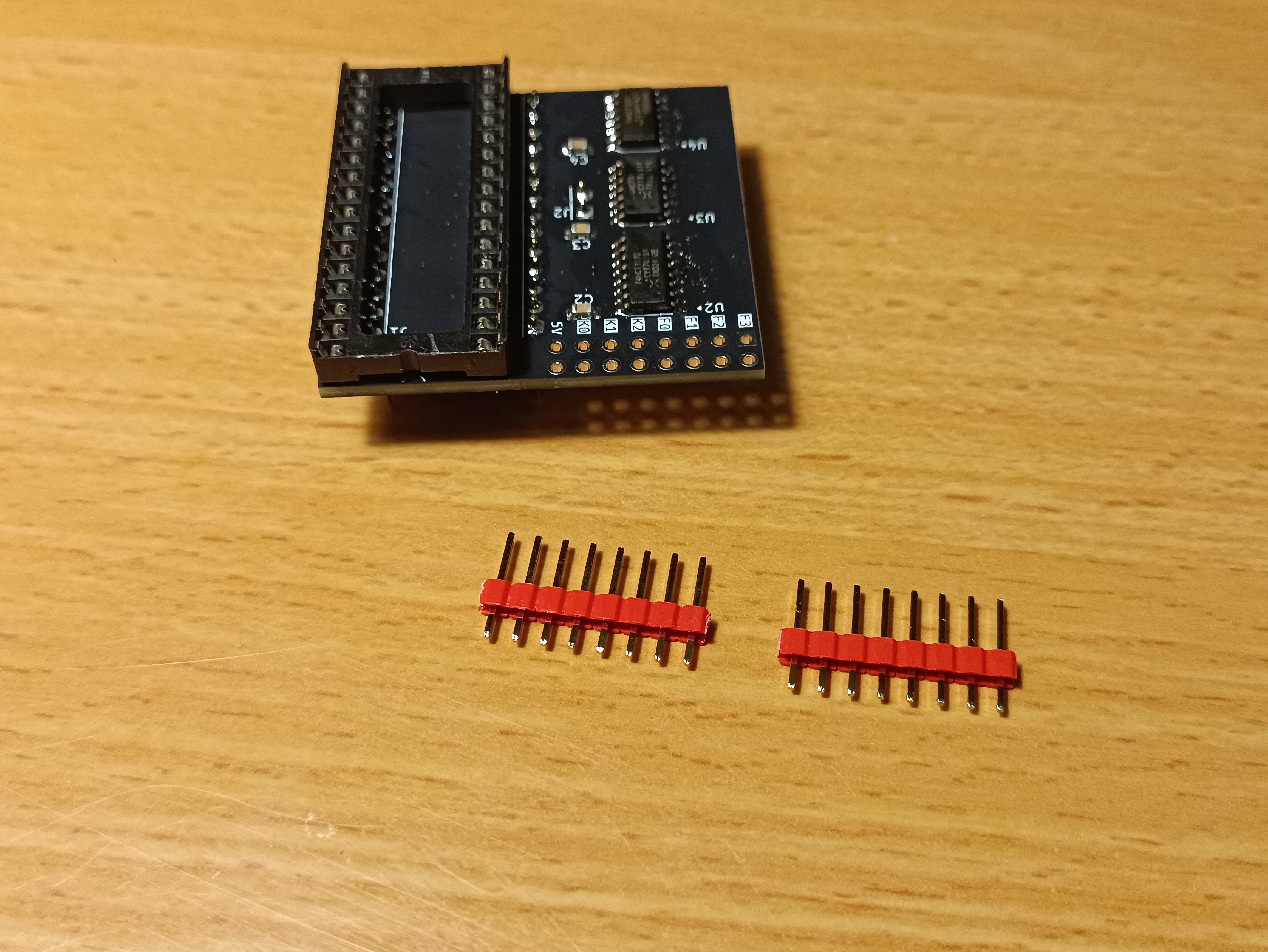

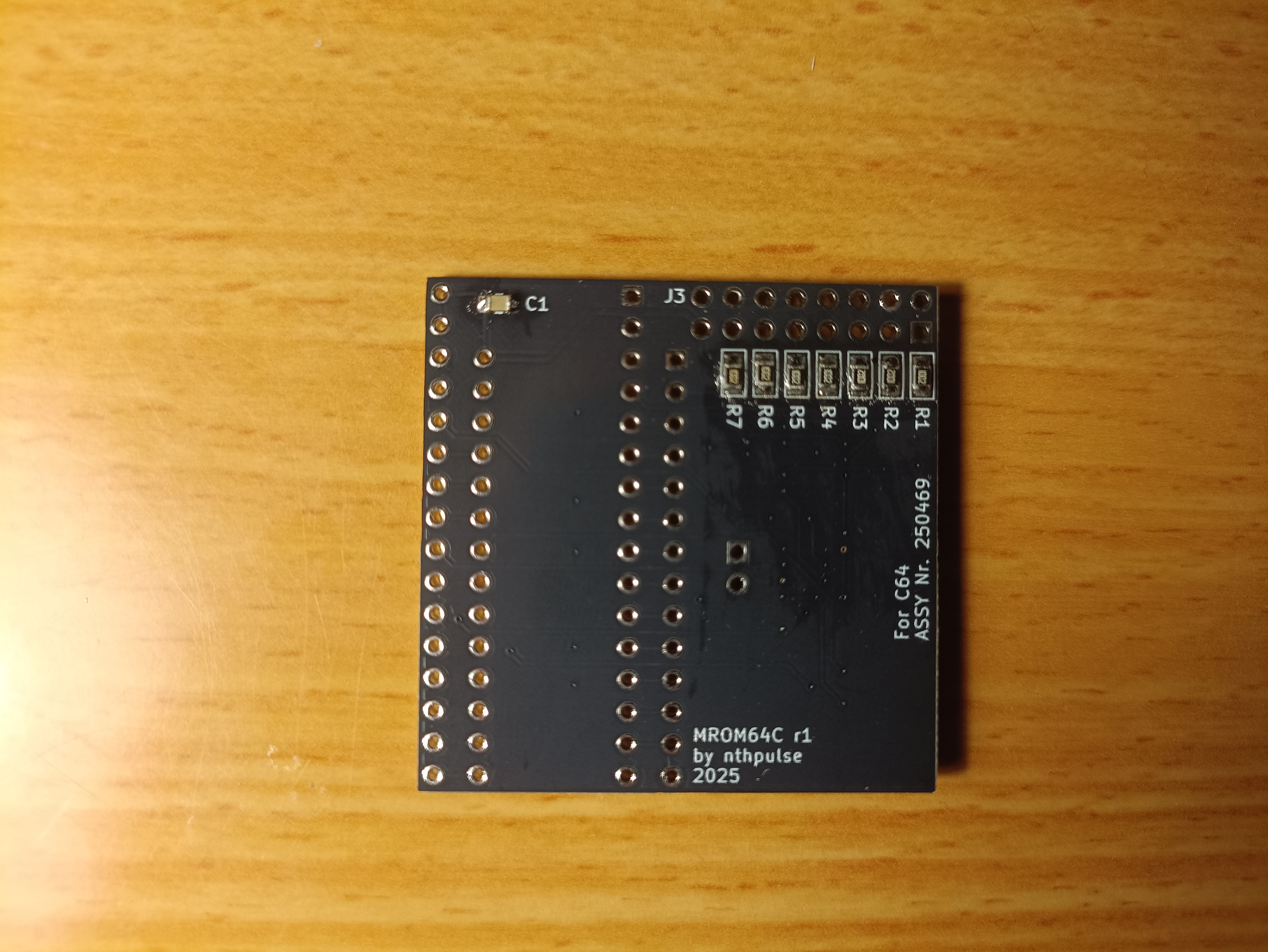

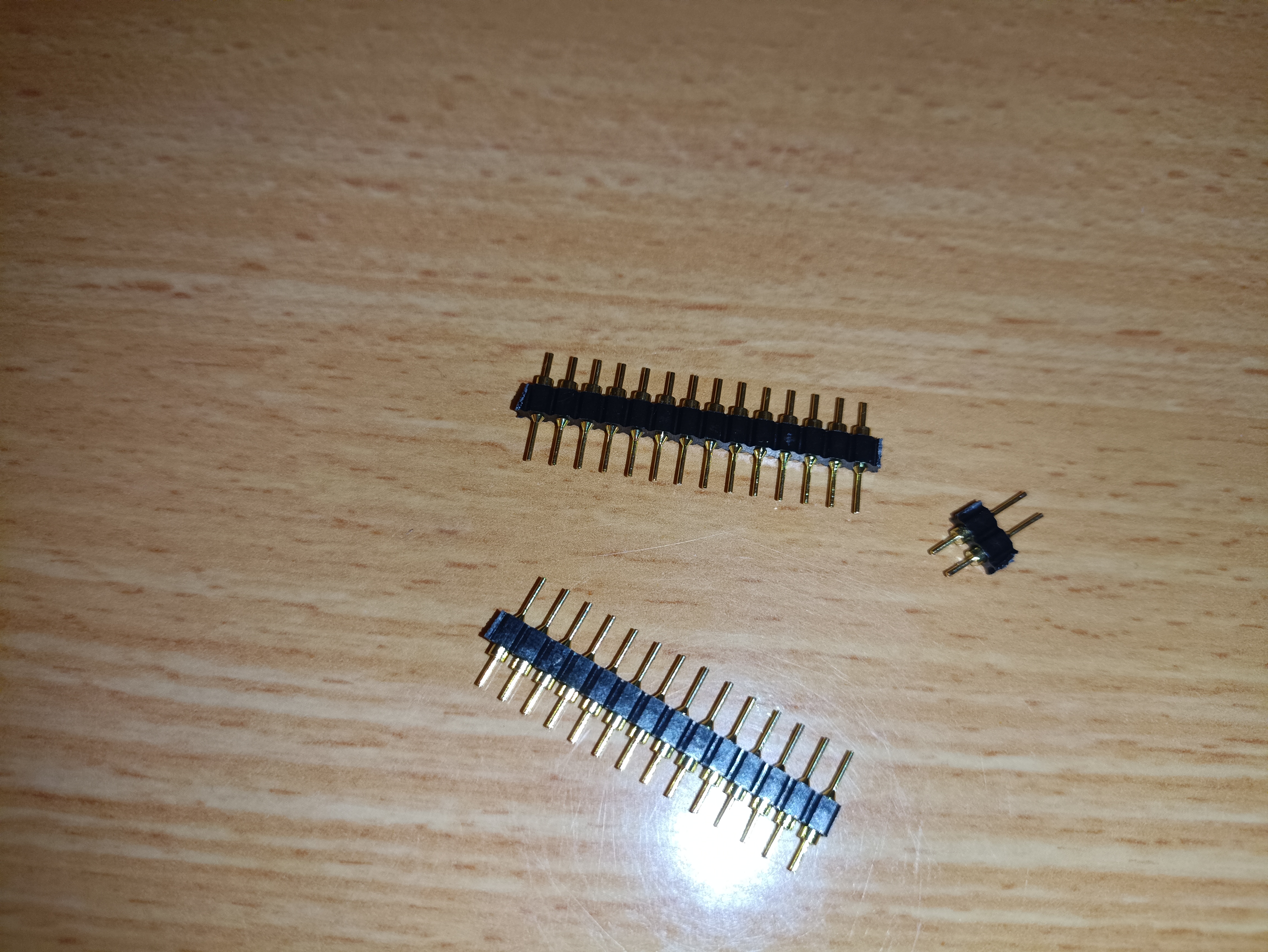

3. Break apart some single-row round pin headers. One length of 2 pins and two lengths of 14 pins are needed.



---

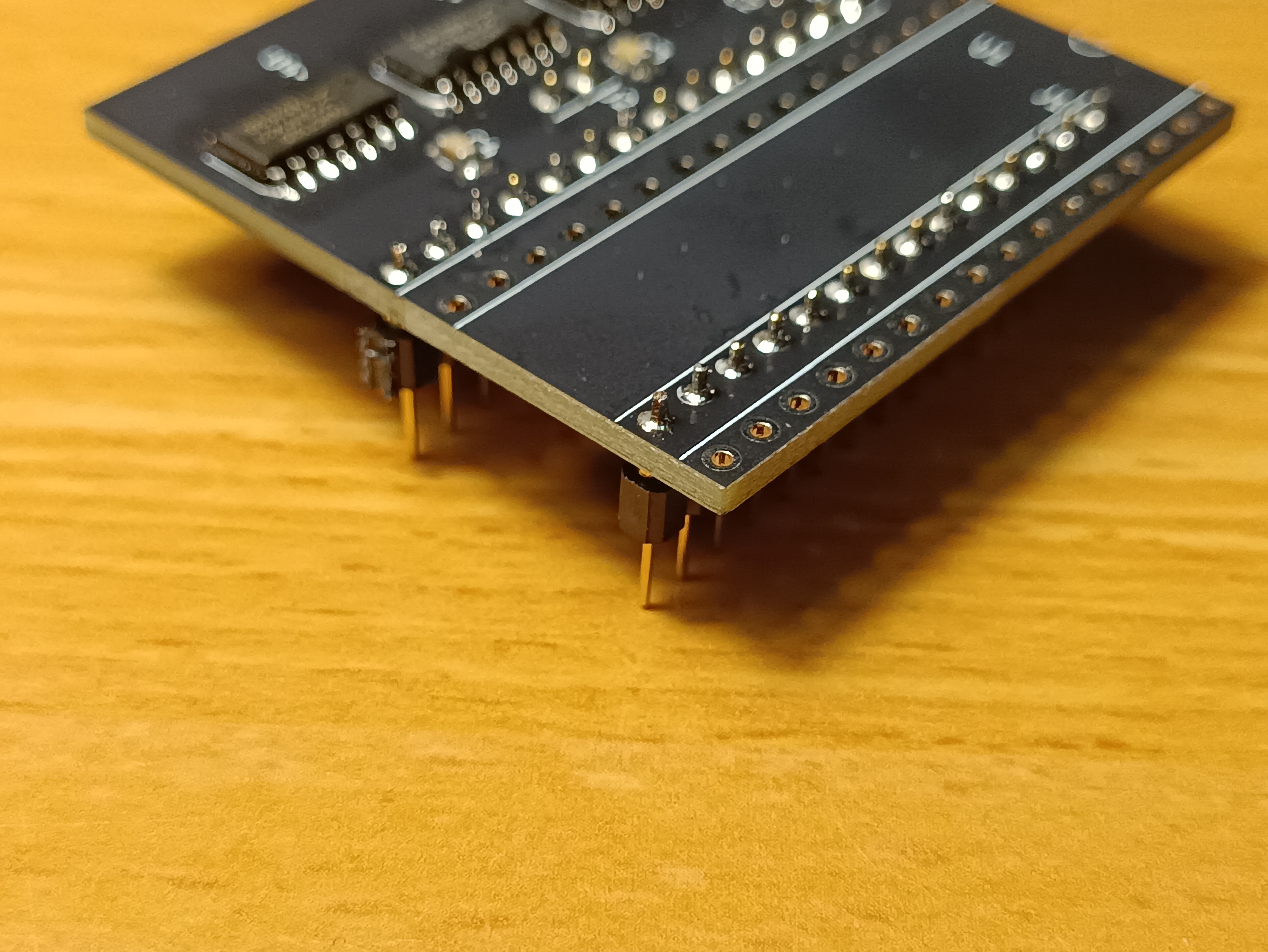

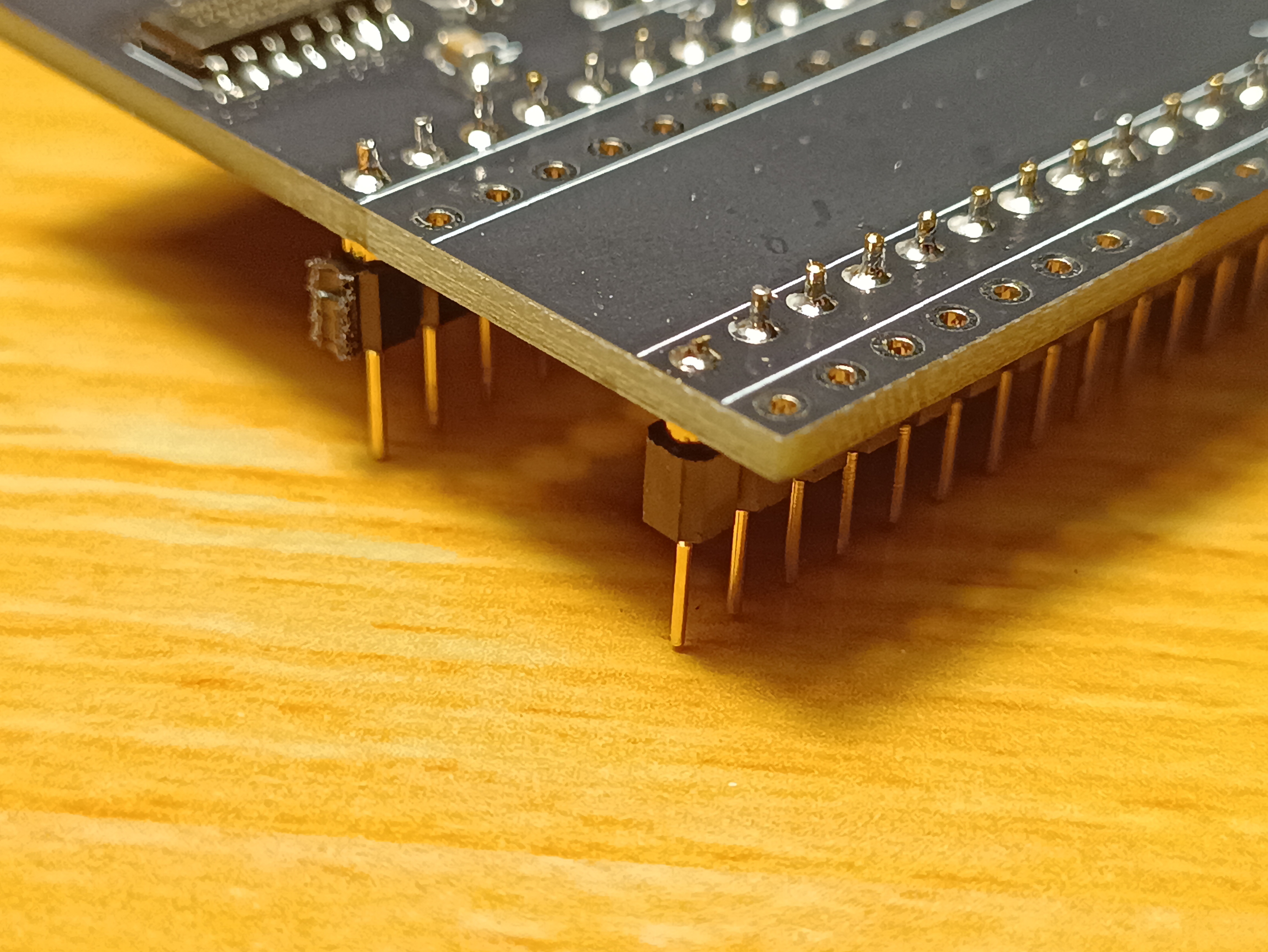

4. Cut down the bottom right corner pin's solder joint, as it may collide with the DIP socket



---

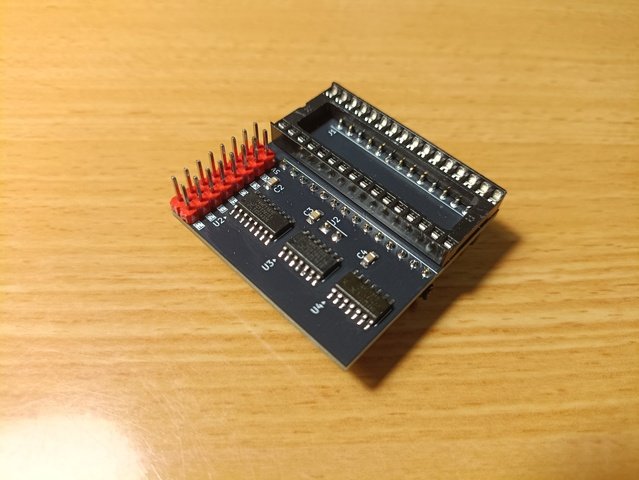

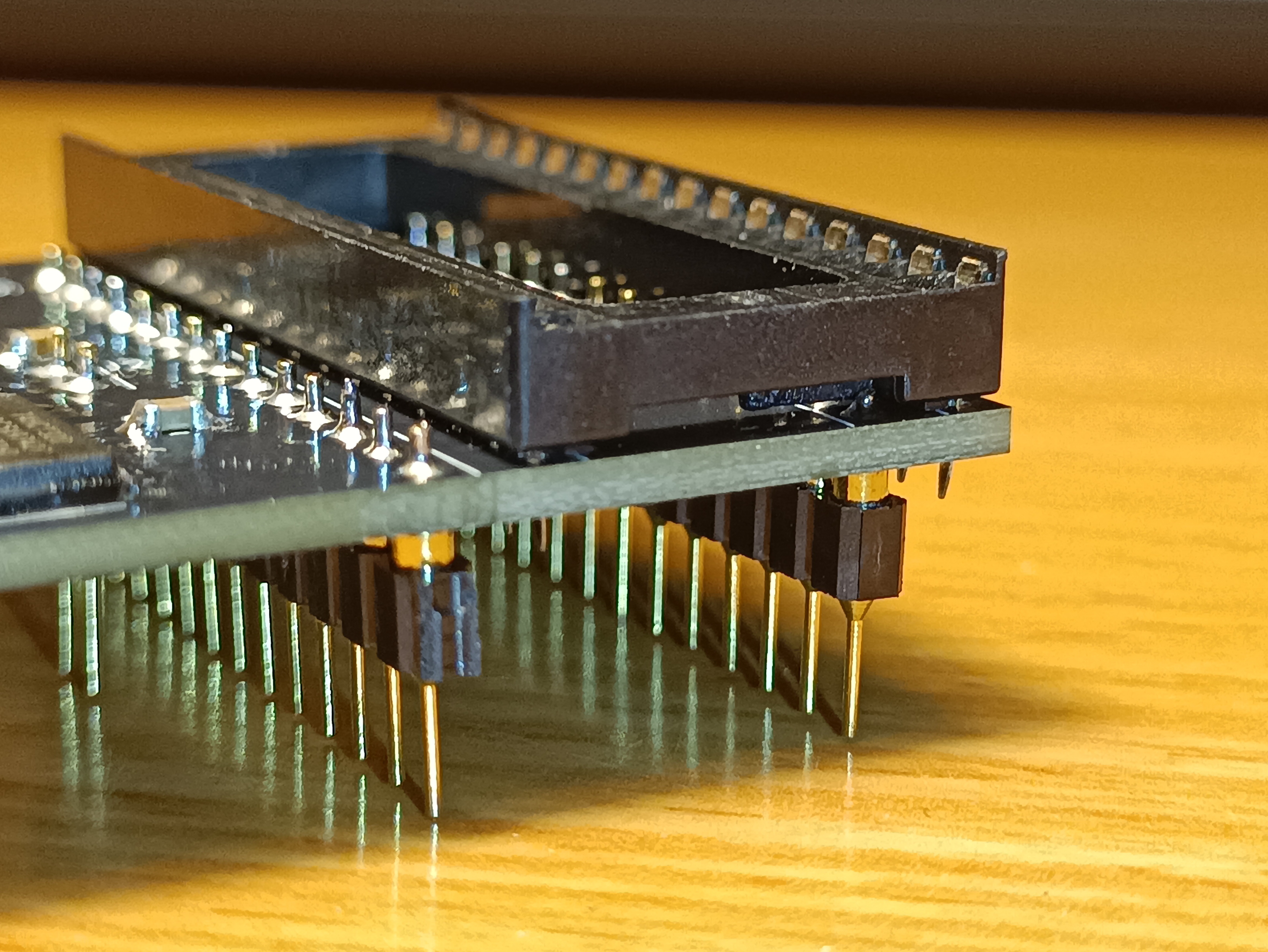

5. Install the DIP socket



---

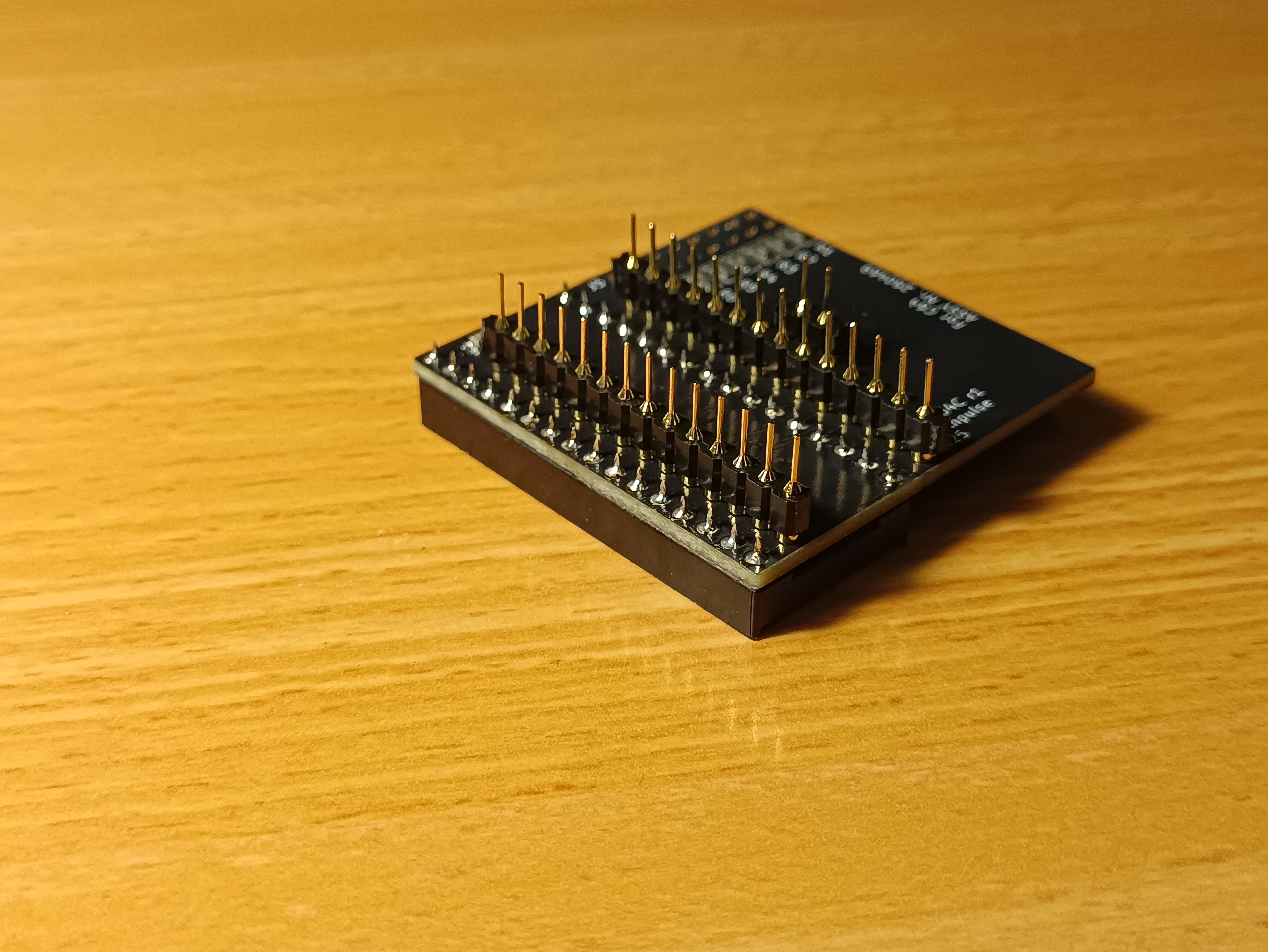

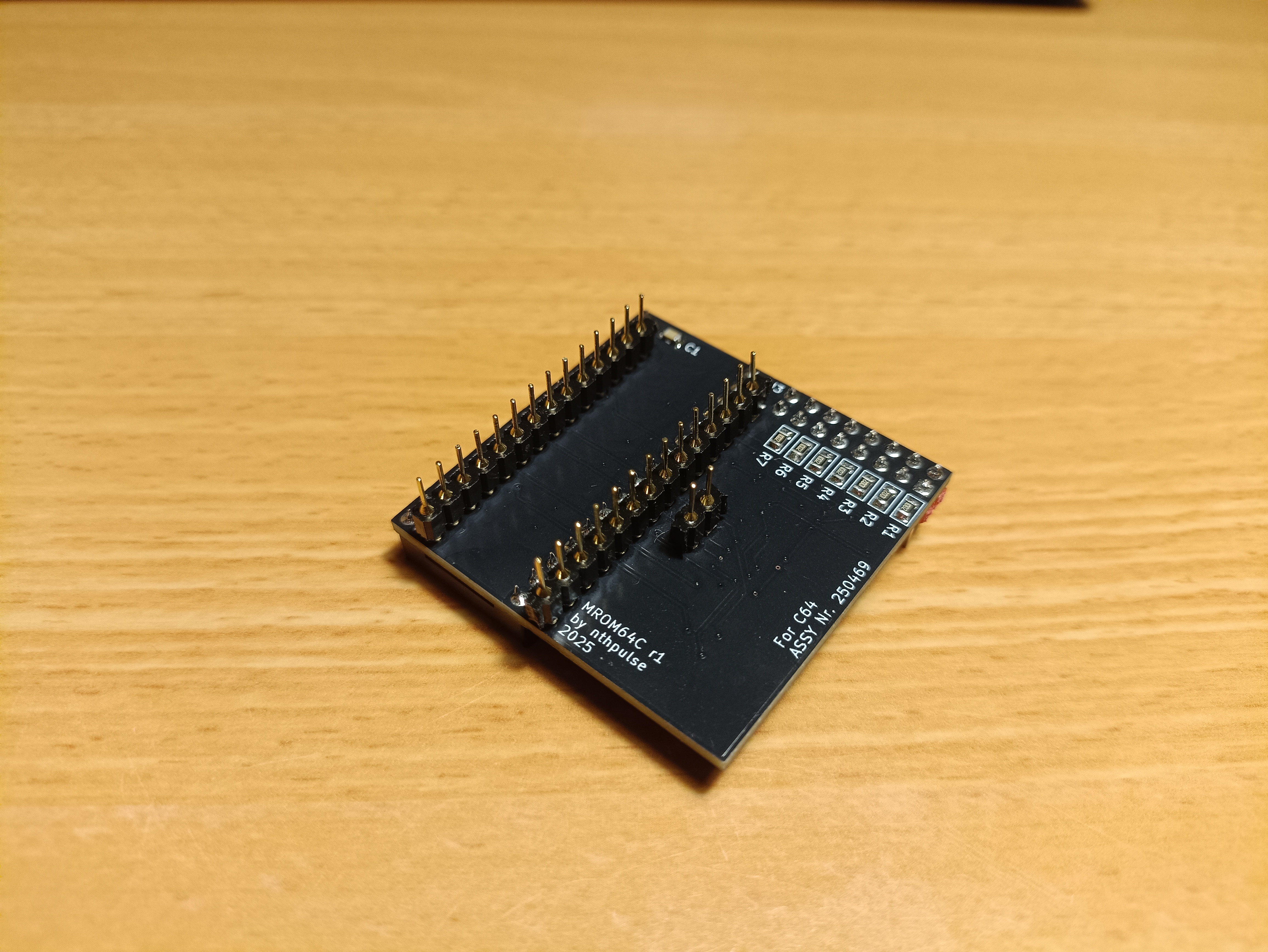

6. Install the pin headers



---

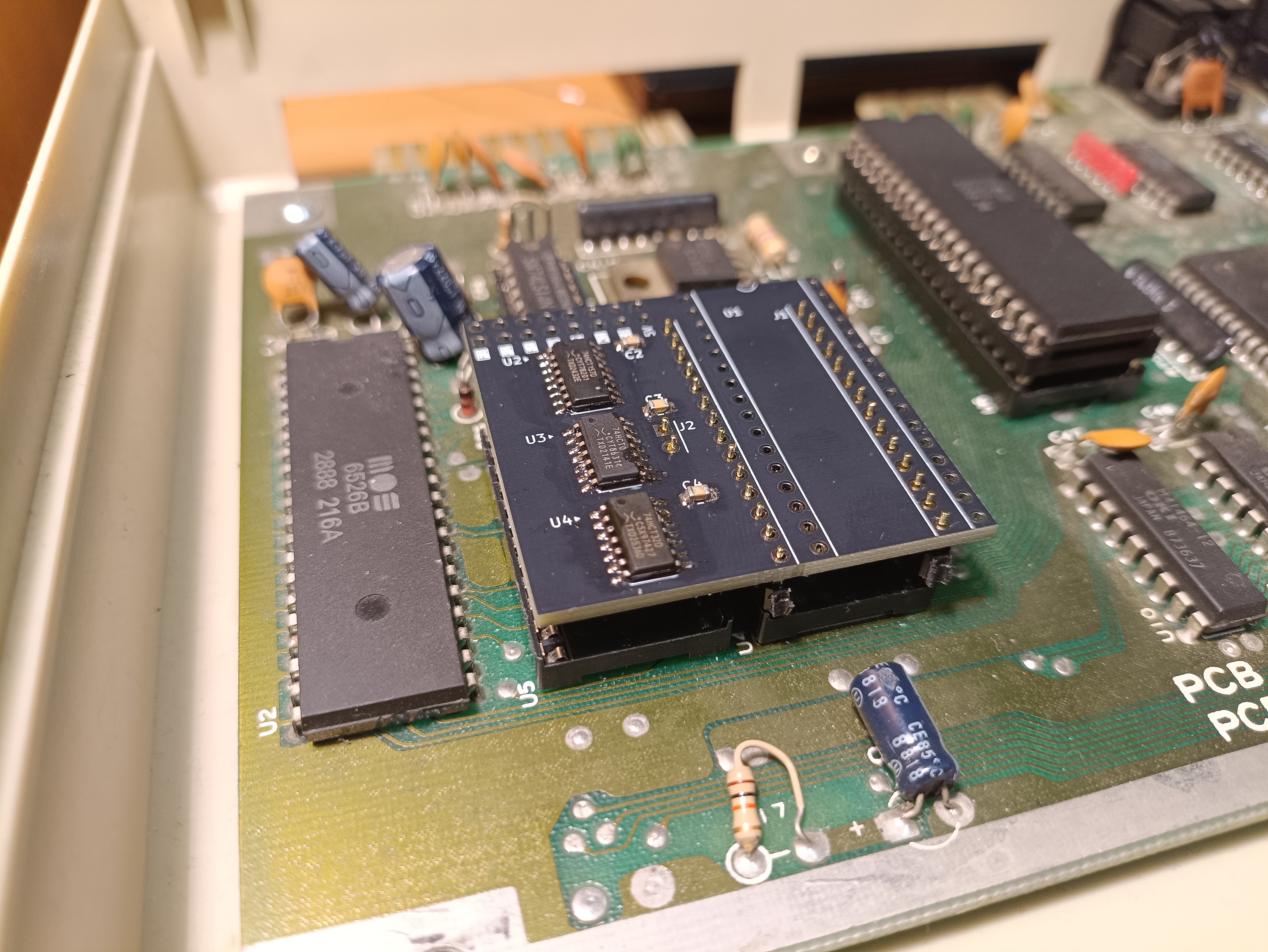

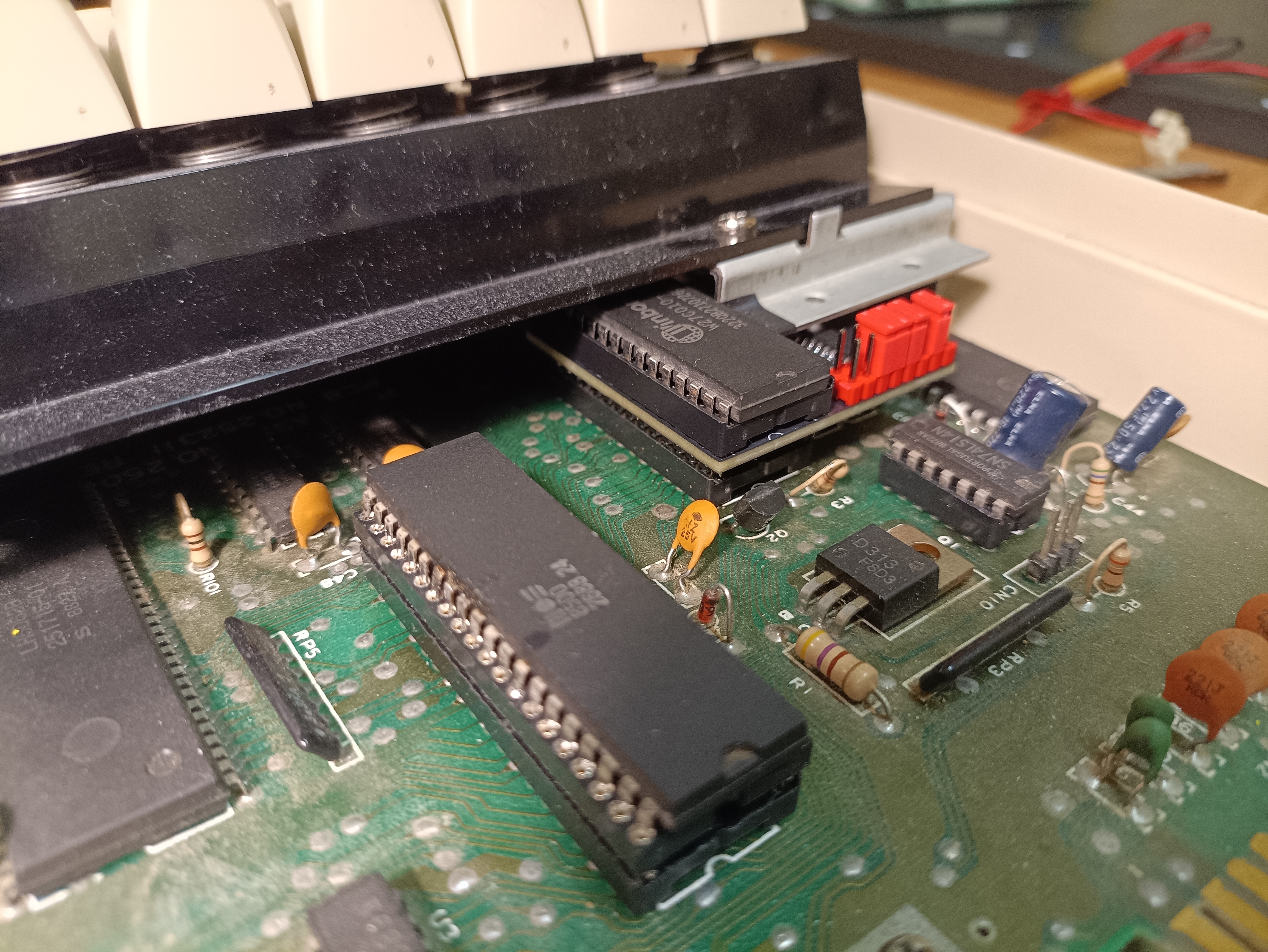

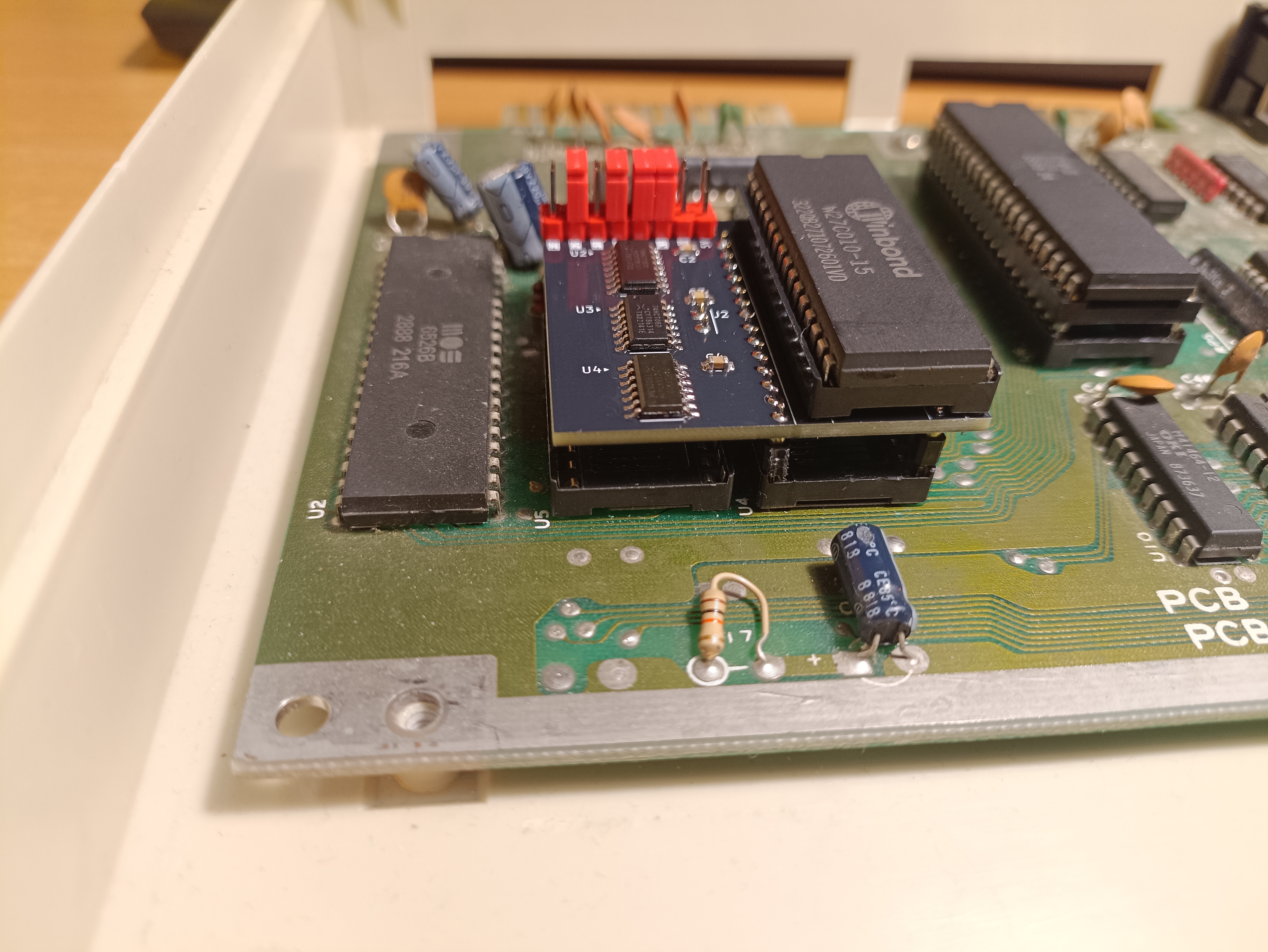

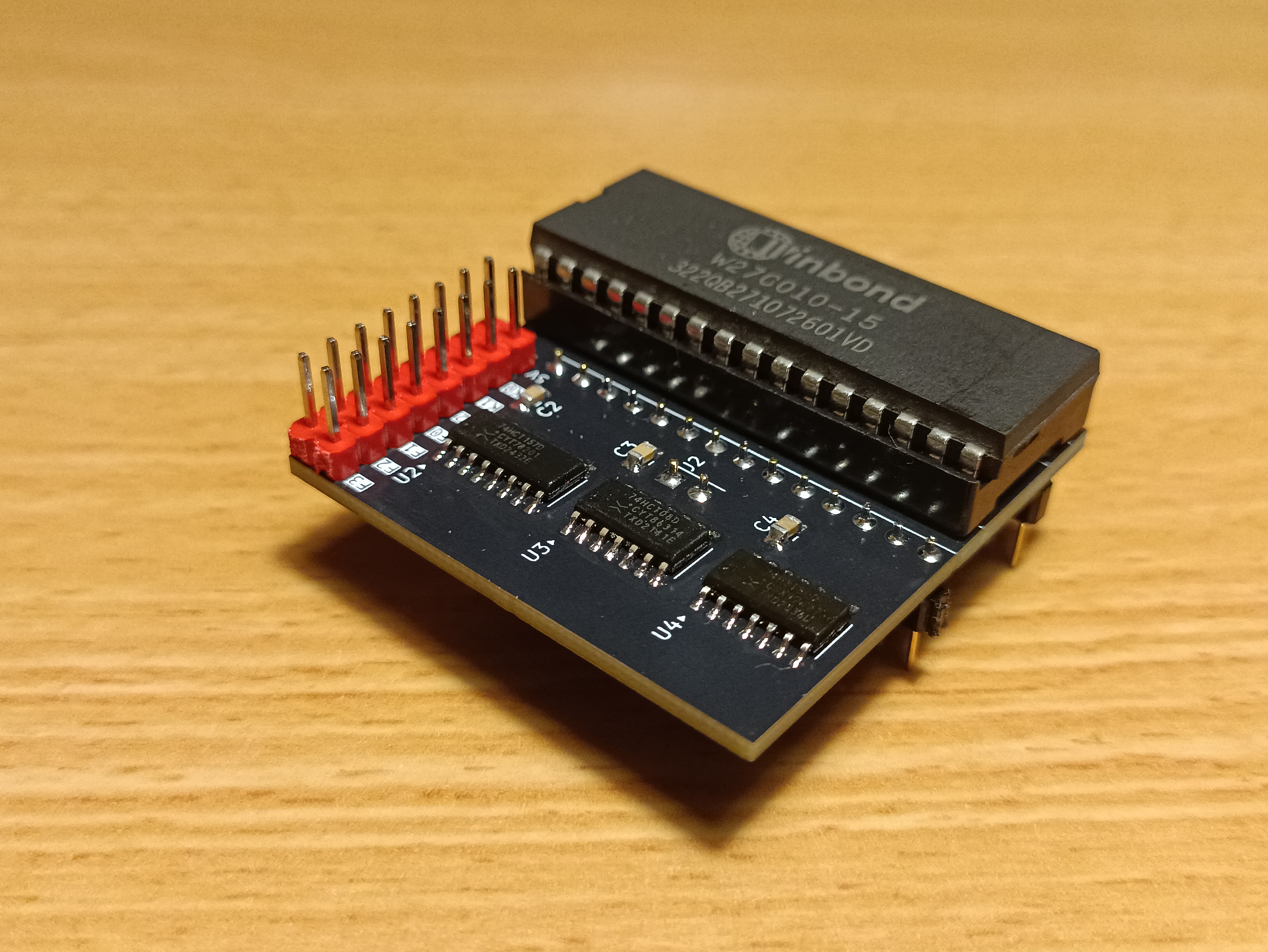

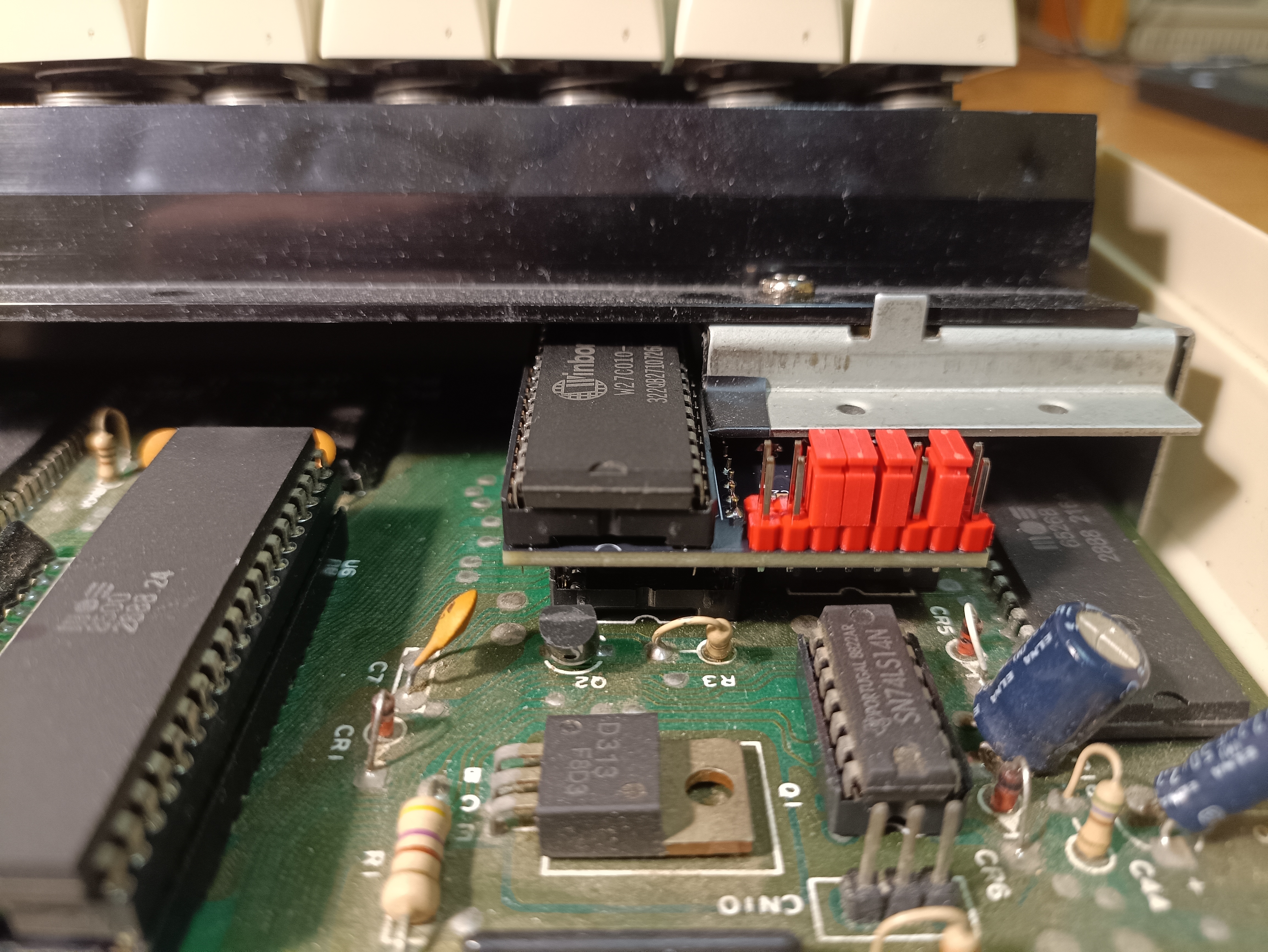

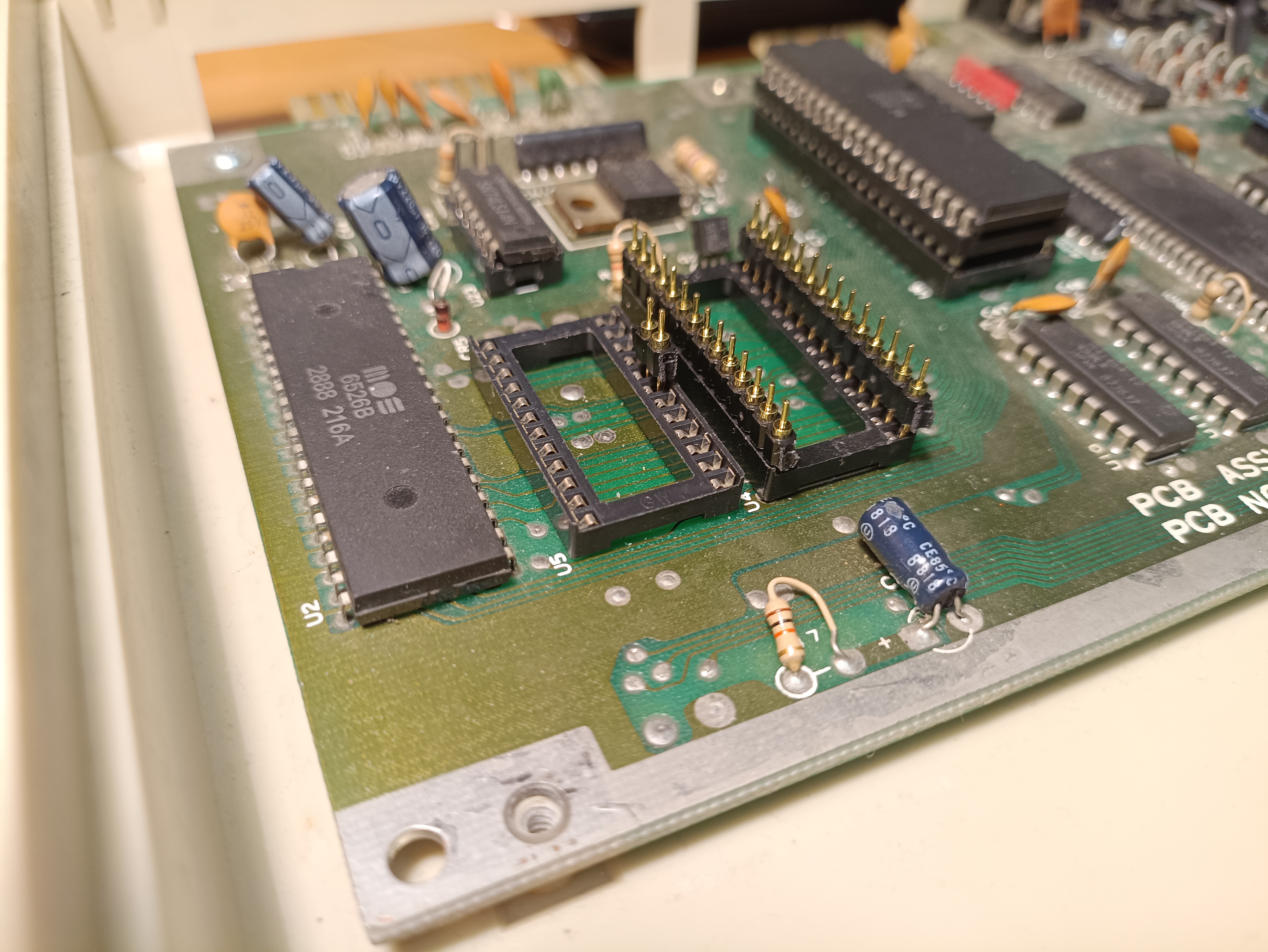

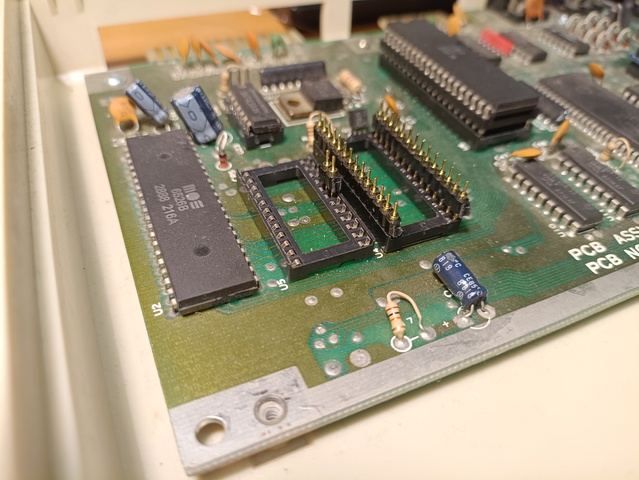

7. It is complete. Installed a programmed 010 ROM into the socket and install in a C64.
